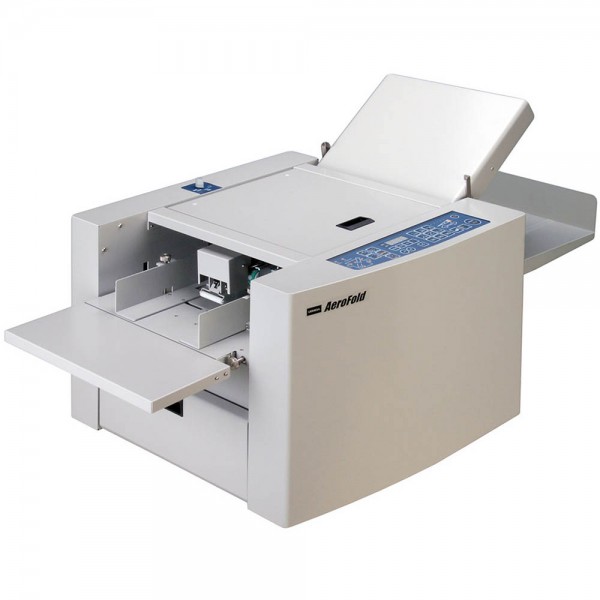

The Uchida AeroFold Plus Folding Machine is a Premium Paper Folder Device and the only compact folding machine on the market with a vacuum feed system. It comes with a belt fed suction feed folder which has 6 fold options, can folds up to 15,000 sheets per hour up to SRA3 size of various types of papers including offset paper, coated paper, recycling paper, copyong paper, art paperand digital printed papers. of various densities.

SRA stands for “supplementary raw format A” and is of a slightly larger size. For example, the standard measurements for A3 paper are 297mm x 420mm, whereas SRA3 paper's measurements are 320mm x 450mm.

Benefits:

• Folding speed up to 15000 sheet / hour
• Friendly interface and error indication
• Automatic adjustment of folding cassettes for the desired type of fold
• Automatic detection of the paper feed size for fine adjustment of folding cassettes
• Expansion of finishing possibilities with punching and creasing modules

Key Features:

• Maximum sheet size: 330mm (W) x 488mm (L)
• Paper weight: 52.3-160gsm or 230gsm for single fold
• Quick mode - Up to 15,000 sheets per hour
• 6 fold optionsDouble feed detection
• 800 sheet stacking capacity (80gsm)
• Designed & manufactured in Japan
• 1 year manufactures warranty
• Optional: Perforating Unit

Technical features and characteristics:


Uchida AeroFold is a fully automatic two-cassette folding machine, it contains 30 pre-programmed fold types for standard paper sizes, it is also possible to save your own settings. Vacuum belt allows you to work consistently with all types of paper, incl. recycled and coated, as well as an extended range of densities (from 52.3 to 230 g / m2).

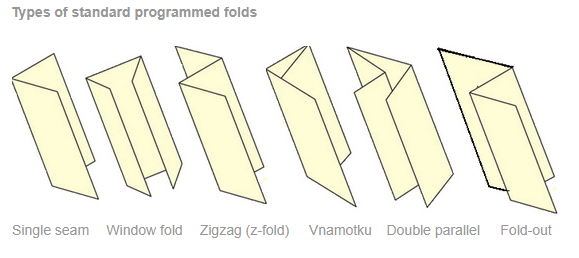

There are 6 Quick Start buttons on the control panel to enable standard folding modes: single fold, zigzag folding, winding, double parallel fold, fold-out, window. It's designed with Japanese thoroughness Uchida AeroFold has a dust and noise insulating hood, covering the mechanism parts from the influence of aggressive environment and the ingress of small foreign objects. Error indication occurs on the device's display and allows you to eliminate troubles in minutes and continue working. The sheet is fed with a vacuum belt, so the machine easily works with papers of various qualities and densities - from 52.3 g / m to 230 g / m.

Video Overview of UCHIDA Aerofold Plus

Uchida Aerofold Plus Specifications

Made to the Highest Quality Standards since 1910.

Made in Japan
