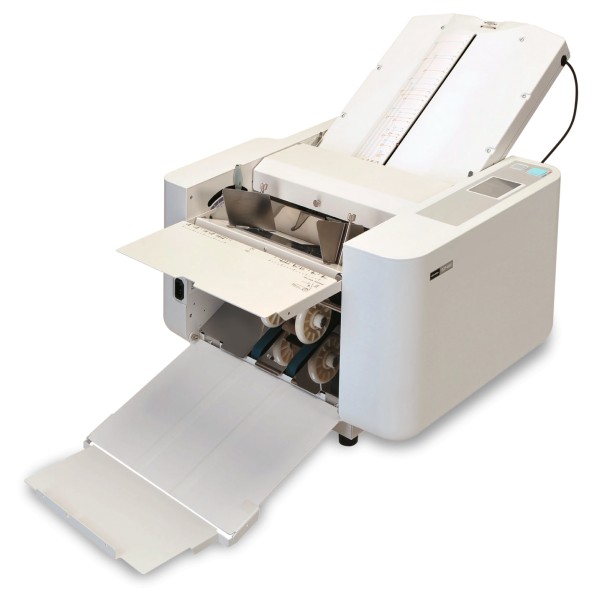

The EZF-500 high-use paper folding machine can fold 14,400 sheets per hour and recommended usage is up to 150,000 papers per month. The EZF-500 can be operated through it's color touch screen which allows you to see settings, jams, paper counts and other useful information on it's screen. It would bring you easier operation to you when folding papers sized up to A3.

Specs at a Glance:

• Maximum sheet size: 300mm (W) x 432mm (L)
• Paper weight: 46.5-140gsm or 210gsm for single fold
• Quick mode - Up to 14,400 sheets per hour
• 7" Touch screen 6 fold options
• 500 sheet stacking capacity (64gsm)
• Designed & manufactured in Japan
• 1 year manufactures warranty
• Optional: Perforating Unit

Demo Video:

Key Features:

• Comes with a 7 inch Touch Screen for ease of use
• Folding position setting: Manual Max. paper size: 300 (W) x 432 mm (L) Min. paper size: 91 x 128 (Single fold only)
• Standard mode: 2,400 / 6,000 / 10,800 sheets/hr (single folding of A4 size stock)
• Noise reduction mode: 3,600 sheets/hr
• Thick paper mode: 3,600 sheets/h
• rQuick mode: 14,400 sheets/hr
• Paper quality: 46.5 -140 gsm (single fold: up to 210gsm *depending on paper type
• Paper stacking capacity:500 sheets (64gsm)
• Operations: Buttons + 4 digit counter (Addition / Subtraction)
• Folding pattern: 6 kinds (single, letter, zigzag / double parallel, fold out, gate
• Dimensions (WxDxH): 1010x545x500mm Weight: 26.8kg
• Power consumption: 50W (110-240VAC, 50/60Hz)
• Designed & manufactured in Japan
• 1 year manufactures warranty
• Optional: Perforating Unit

Colour Touch Screen:

The EZF-500/600 can be operated with a color touch screen. You can see setting, jam map, counter and other details in the screen prividing a very simple and intuitive operation for users.





Speciafications:

Made in Japan

Made to the Highest Quality Standards since 1910.
