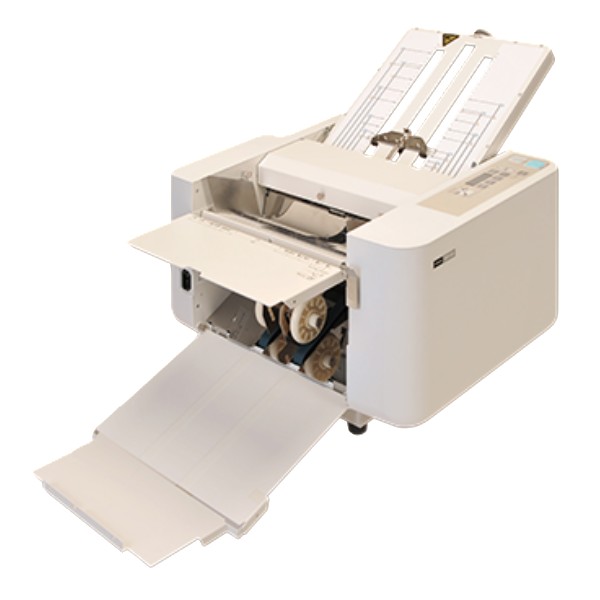

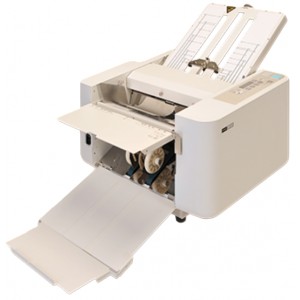

The Uchida EZF 200 Letter Folder is an affordable desktop paper folding machine covering 6 major folding types for a wide range of papers (paper weights up to 140gsm (Single fold up to 210gsm). Featuring a noise reduction mode, the EZF200 can be used in an office with minimal disturbance to co-workers, along with ‘standard’ and ‘quick’ modes for larger runs. Also featuring a roller/belt delivery system to neatly deliver your finished documents for ease of stacking. Its Designed and Manufactured in Japan to very high standards and in quick mode can fold up to 14,400 sheets per hour saving your business valuable time and costs doing this manually.

Specs at a Glance:

• Maximum sheet size: 300mm (W) x 432mm (L)
• Paper weight: 46.5-140gsm or 210gsm for single fold
• Quick mode - Up to 14,400 sheets per hour6 fold options
• 500 sheet stacking capacity (64gsm)
• Designed & manufactured in Japan1 year manufactures warranty
• Optional: Perforating Unit

Demo Video of EZF-200:

Fold Types



Key Features:

• Folding position setting: ManualMax. paper size: 300 (W) x 432 mm (L)
• Min. paper size: 91 x 128 (Single fold only)
• Standard mode: 2,400 / 6,000 / 10,800 sheets/hr (single folding of A4 size stock)
• Noise reduction mode: 3,600 sheets/hr
• Thick paper mode: 3,600 sheets/hr
• Quick mode: 14,400 sheets/hr
• Paper quality: 46.5 -140 gsm (single fold: up to 210gsm *depending on paper type
• Paper stacking capacity:500 sheets (64gsm)
• Operations: Buttons + 4 digit counter (Addition / Subtraction)
• Folding pattern: 6 kinds (single, letter, zigzag / double parallel, fold out, gate)
• Dimensions (WxDxH): 1010x545x500mm Weight: 26.8kg
• Power consumption: 50W (110-240VAC, 50/60Hz)
• Designed & manufactured in Japan1 year manufactures warranty
• Optional: Perforating Unit

EZF-200 Specifications:

Made in Japan

Made to the Highest Quality Standards since 1910.
