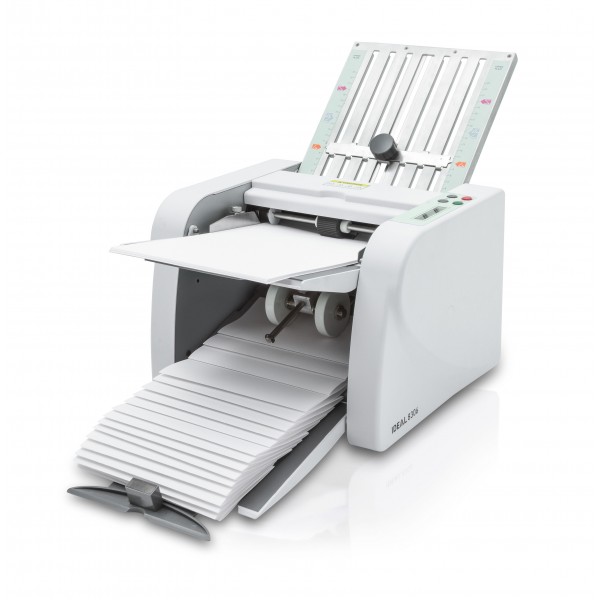

COMPACT FOLDING MACHINE FOR FOUR FOLD TYPES AND STREAM DELIVERY PAPER EJECTION

A4 Paper folder | Paper weights 60 gsm to 120 gsm | fold-out feeding table for 150 sheets of paper | fold speed 115 sheets per minute | easy setting of the fold stops on the two folding pockets (fold symbols and colour code indications) | automatic power cut-off with indication on display if top cover is opened | automatic shut off when the last sheet is folded | easy operation via start and stop push buttons | digital display with error indication | digital counter (addition/subtraction) | stream delivery paper ejection system conveyed by belts and three manually selectable ejection roller positions.

Fold Types:  letter fold, zigzag fold, double parallel, single fold

Compact A4 automatic folding machine:

• Recommend for folding up to 8,000 sheets per month
• Manual fold type settings for 4 different folds
• Friction fed with automatic paper feeder
• LED display with fold counter
• Can perform up to 7,000 folds per hour
• Includes paper jam detection
• Accepts paper weight 65-110gsm
• 150 sheet stacking capacity

Technical Specifications:

Product Features

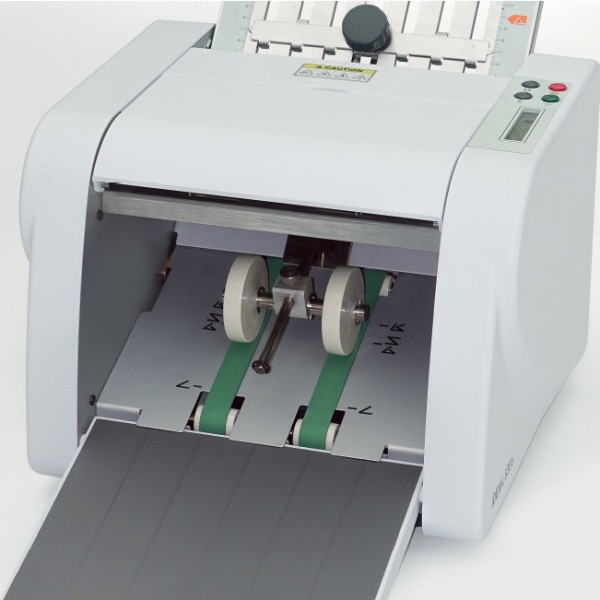

• Paper ejection

  Stream delivery paper ejection system conveyed by belts and three manually selectable ejection roller positions.

• Control panel

  Four push buttons and the digital display with the addition/ subtraction counter guarantee an easy, uncomplicated operation.

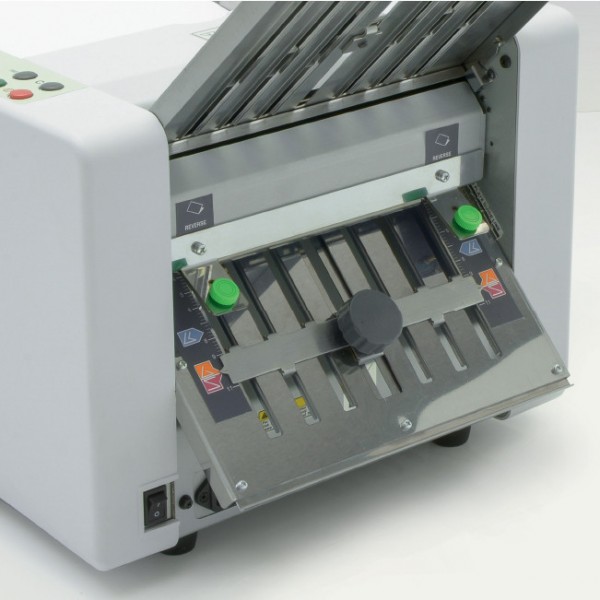

• Folding Positions

  Fold symbols and colour codes indicate the positions of the fold stops on the two pockets for easy setting of the different fold types (letter fold, zigzag fold, double parallel, single fold).

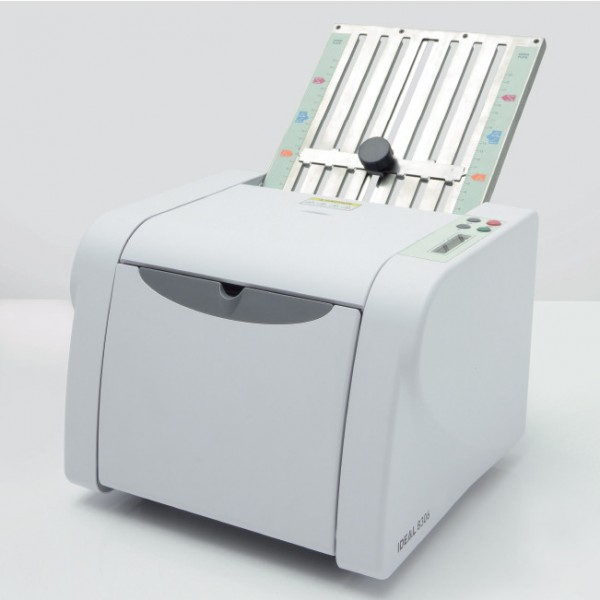

• Compact dimensions

  Feeding and paper receiving trays fold away. Compact dimensions and only 15 kg make it fully portable.
